Hydraulic flow in L/min depends on the configuration, so we confirm it per order. Hinge-pin height and ground pressure are confirmed on request. Send us your attachment list and we will supply the figures that matter for your tools.

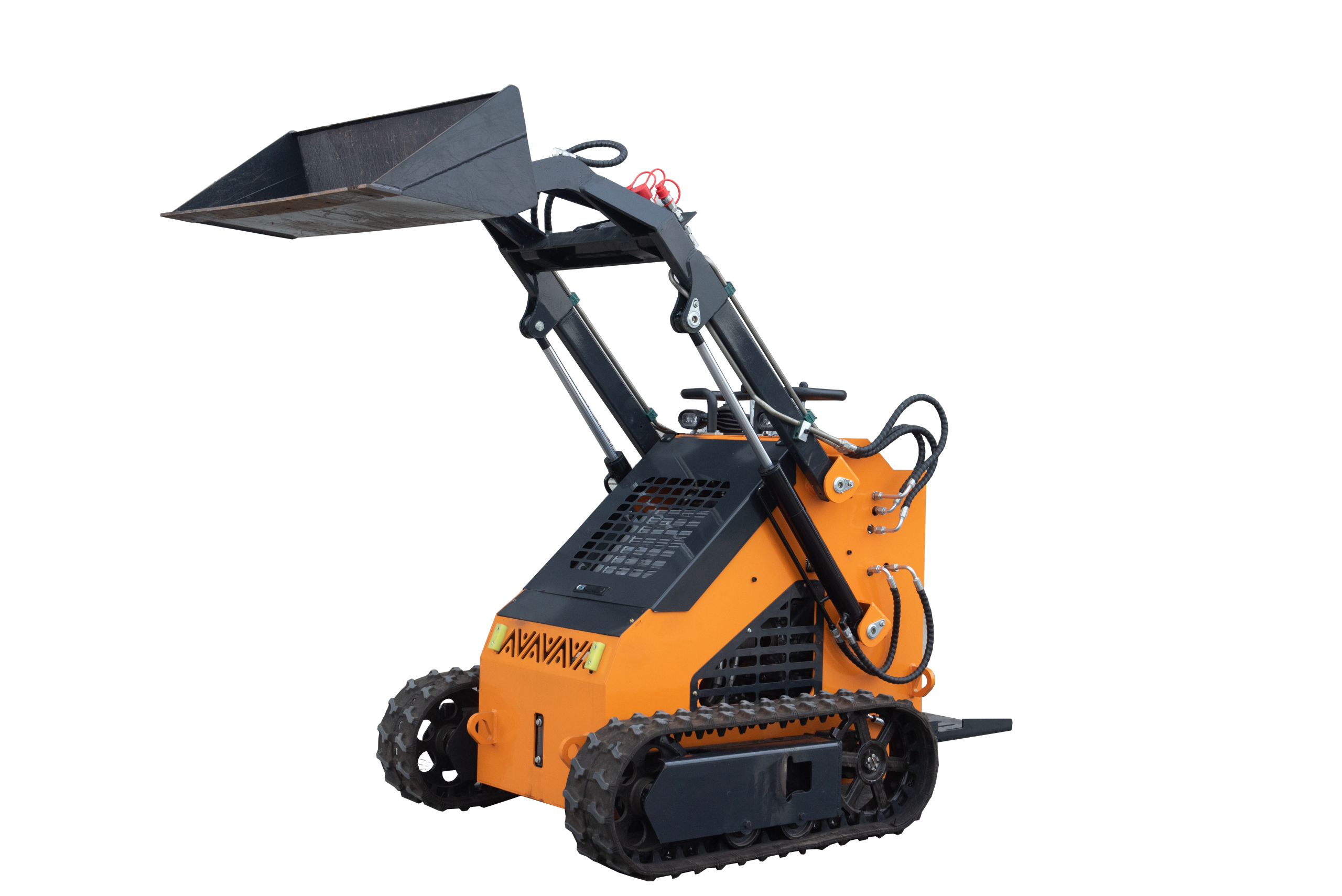

As a stand-on compact loader, the PSH100 keeps the operator on a rear platform rather than in a cab. That is part of how the footprint stays this small.
| Item | PSH100 |
|---|---|
| Machine width | 1090 mm (43 in) |
| Height without attachments | 1270 mm (50 in) |
| Operating weight | 890 kg (1,960 lb) |
| Rated load | 300 kg (660 lb) |
| Bucket capacity | 0.15 m³ |
| Undercarriage | Rubber parallel tracks |
| Climbing rating | 35° |
| Travel speed | 0–6 km/h |
| Engine | 2-cylinder, four-stroke, electric start |
| Power (rated / max) | 15 / 16.8 kW (about 20 / 22.5 hp) |
| Fuel | Gasoline, diesel optional |
| Hydraulic pressure | 17 MPa |
| Working height / dumping height | 2100 mm / 1480 mm |
| Emission standard | EPA & EURO 5 |
| Operator position | Stand-on platform, no cab |
| Attachment interface | Common hydraulic coupler |
At 1090 mm, the PSH100 is 5 in narrower than 48-in tracked loaders. Width decides where a compact skidsteer can go: backyards, side-yard gates, greenhouse aisles and rows between trees. If an opening is wider than 1090 mm with working clearance, this machine fits through it. Measure your narrowest access point first and send us the number.
The trade-off is capacity. At a 300 kg rated load, the PSH100 does not replace a larger machine for heavy lifting. It suits confined jobs where machine width matters more than lift capacity.
The same machine serves landscaping, agriculture, forestry and property management crews. For steep slopes where a loader is the wrong tool, the remote control track mower is the better fit.
The range uses a common hydraulic coupler, so one base machine can run several tools. Before you order an attachment, send a photo of the loader's front mounting plate and we will check the fit. Tell us the hydraulic flow too, if you know it. Matching each tool to the job is easier with a buyer's guide to mini skid steer attachments, and every attachment above sits within our compact construction equipment range.
The PSH100 is the one to pick when width is the constraint. The THS100 mini track skid steer and the wheeled WSH100 share the same rated load.
We build in our own 14,000 m² factory in Xuzhou and have served 2,000+ clients. Every machine gets 100% functional testing of drive, hydraulics, controls and safety before shipment.
OEM branding and bulk supply for distributors and fleets
CE-ready configurations with documentation support
Spare parts: rubber tracks, hydraulic components and attachments
Operation manuals and parts lists on request, plus remote service support
Send us your destination country, gasoline or diesel preference, the attachments you need and the quantity. FOB pricing is quoted per order, because it depends on engine choice, attachments and volume. Stand-on loader prices and what drives them are broken down in our cost guide.
Request a PSH100 quote or email ryao@anqunmachinery.com. WhatsApp: +86 15852396897.
Lead times vary by model and configuration. Your destination, quantity and attachment list set the schedule, which is confirmed in the quote. Every machine passes functional testing of drive, hydraulics, controls and safety before it ships.
Warranty terms are set per order and written into the quote. Spare parts such as rubber tracks and hydraulic components are supplied, along with operation manuals, parts lists and remote service support.
The count depends on packaging, attachments and the container size you choose, so the loading plan is confirmed per order. The machine is 1090 mm wide and 1270 mm tall without attachments, which are the dimensions to check against your container.
Gasoline is standard and diesel is optional. Choose diesel if your sites or fleet rules require diesel-only machines, or if you want one fuel across your equipment. Otherwise the standard gasoline engine applies. The PSH100 is listed to the EPA & EURO 5 emission standard.
